HEXS-FS10S-4
Compact Bass Performance with HEXS-FS10S-4

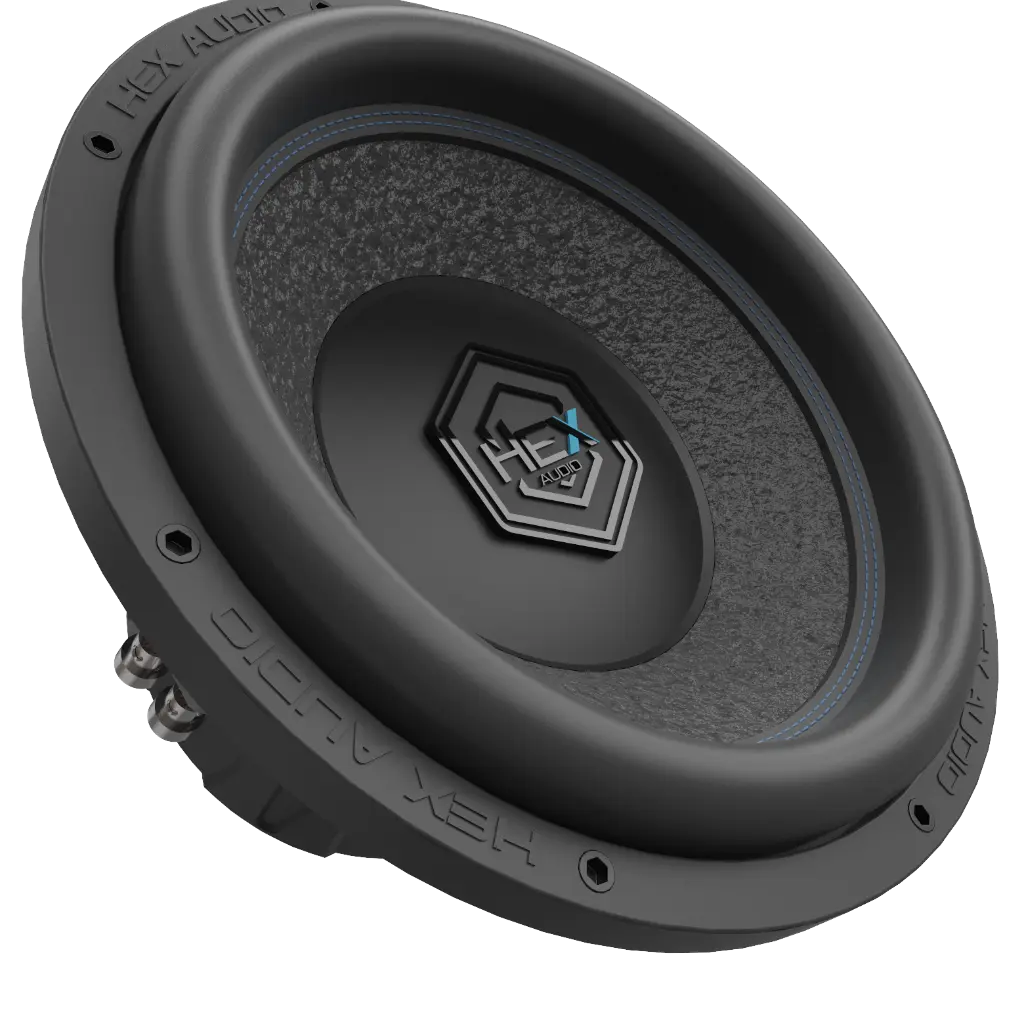

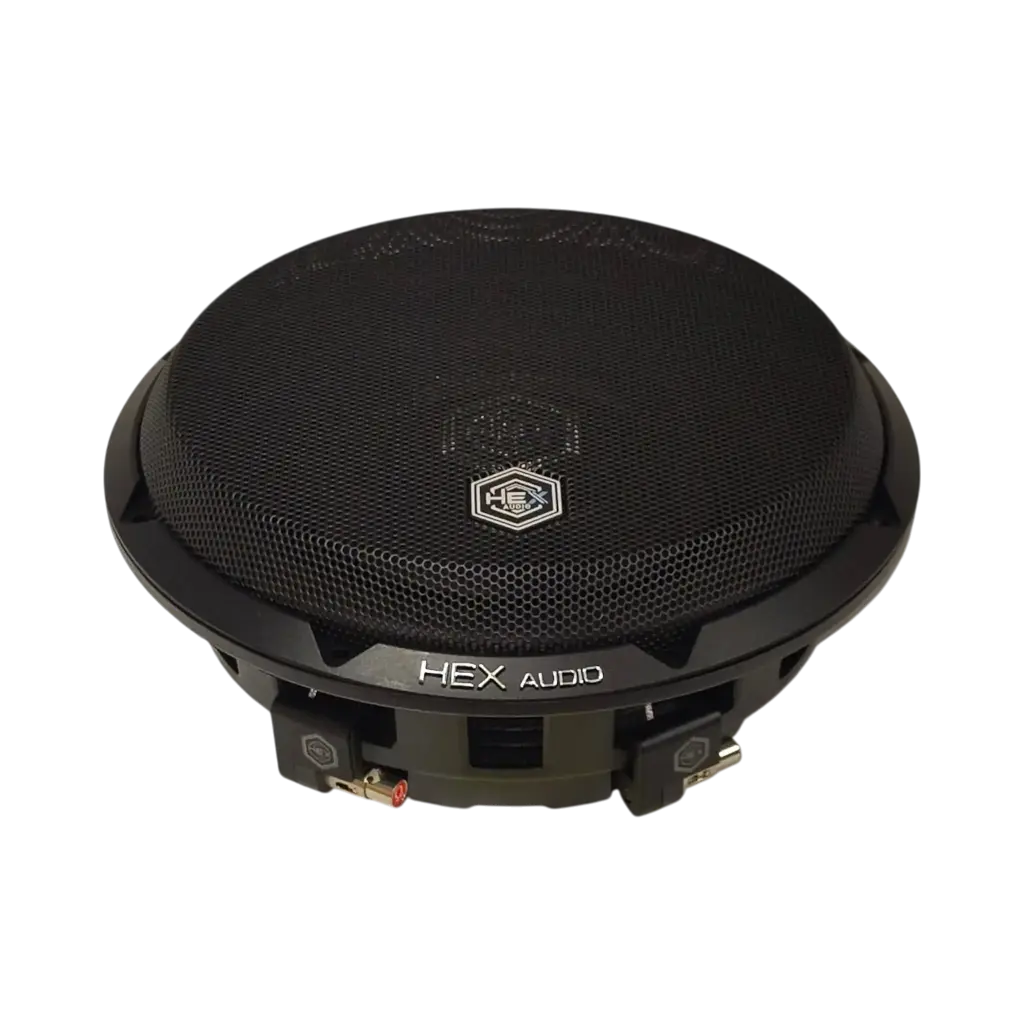

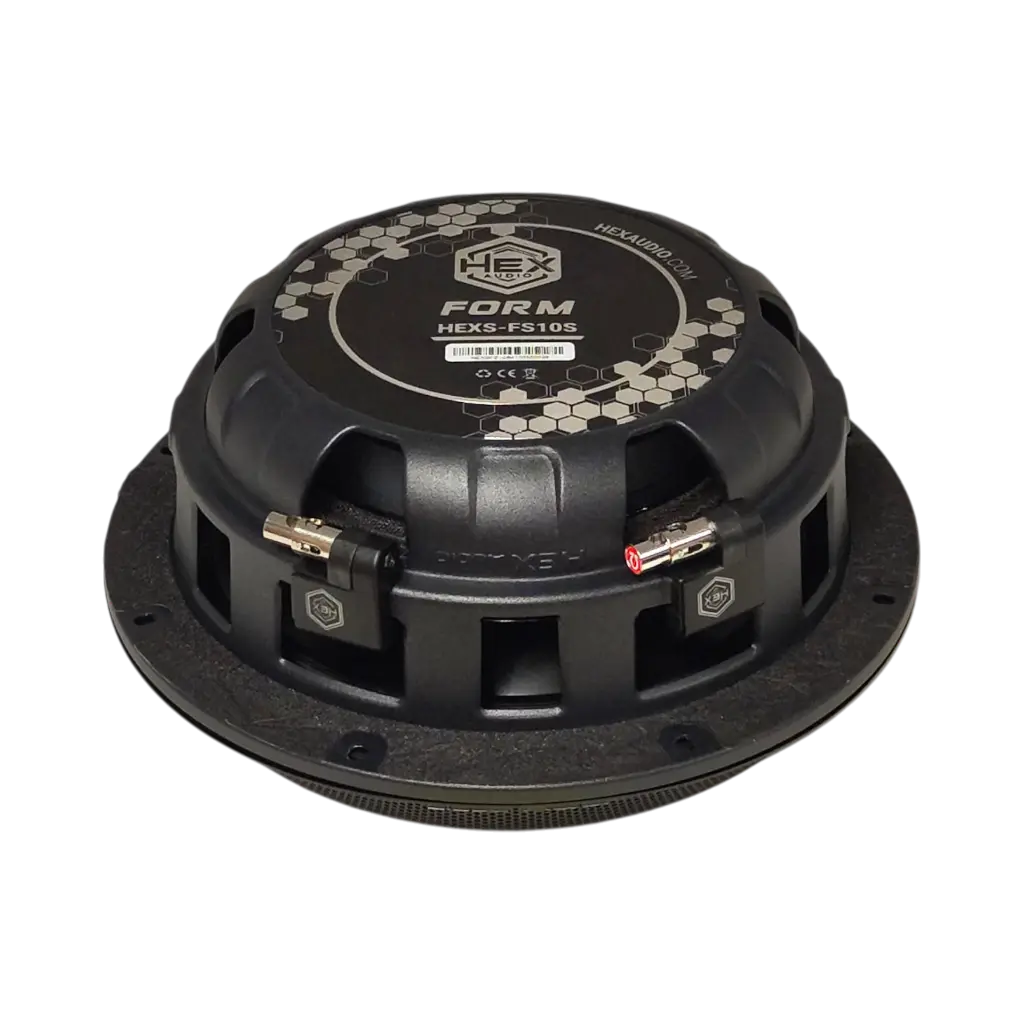

The HEX Audio HEXS-FS10S-4 10-inch shallow-mount subwoofer is designed to deliver powerful bass performance in installations where space is limited. Featuring a dual 4-ohm voice coil configuration, this subwoofer provides flexible wiring options and compatibility with many car audio amplifiers.
Designed for Tight Installation Spaces
The shallow-mount design allows the HEXS-FS10S-4 to fit in locations where traditional deep subwoofers may not fit, including under seats or shallow enclosures.
Strong Bass from a Slim Subwoofer
Despite its compact design, the HEXS-FS10S-4 delivers impressive bass output with 800 watts peak power capability, making it ideal for compact car audio systems.
Flexible System Configuration
The dual voice coil design allows multiple wiring configurations so users can match amplifier impedance requirements and maximize system performance.
Specs
| Specification | Details |
| Subwoofer Size | 10 Inches |
| Voice Coil Configuration | Dual 4 Ohm |
| Peak Power | 800 Watts |
| RMS Power | 500 Watts |
| Frequency Response | ~30 Hz – 350 Hz |
| Sensitivity | ~85 dB |
| Voice Coil | 2" High-Temperature Copper Voice Coil |
| Surround | High-Roll Foam Surround |
| Cone Material | Pressed Paper Cone |
| Mounting Depth | ~4.4 Inches |
| Magnet Type | Ferrite |
