Learn More About
HEX-ES10D-4
Powerful Bass with the HEX-ES10D-4 10-Inch Subwoofer

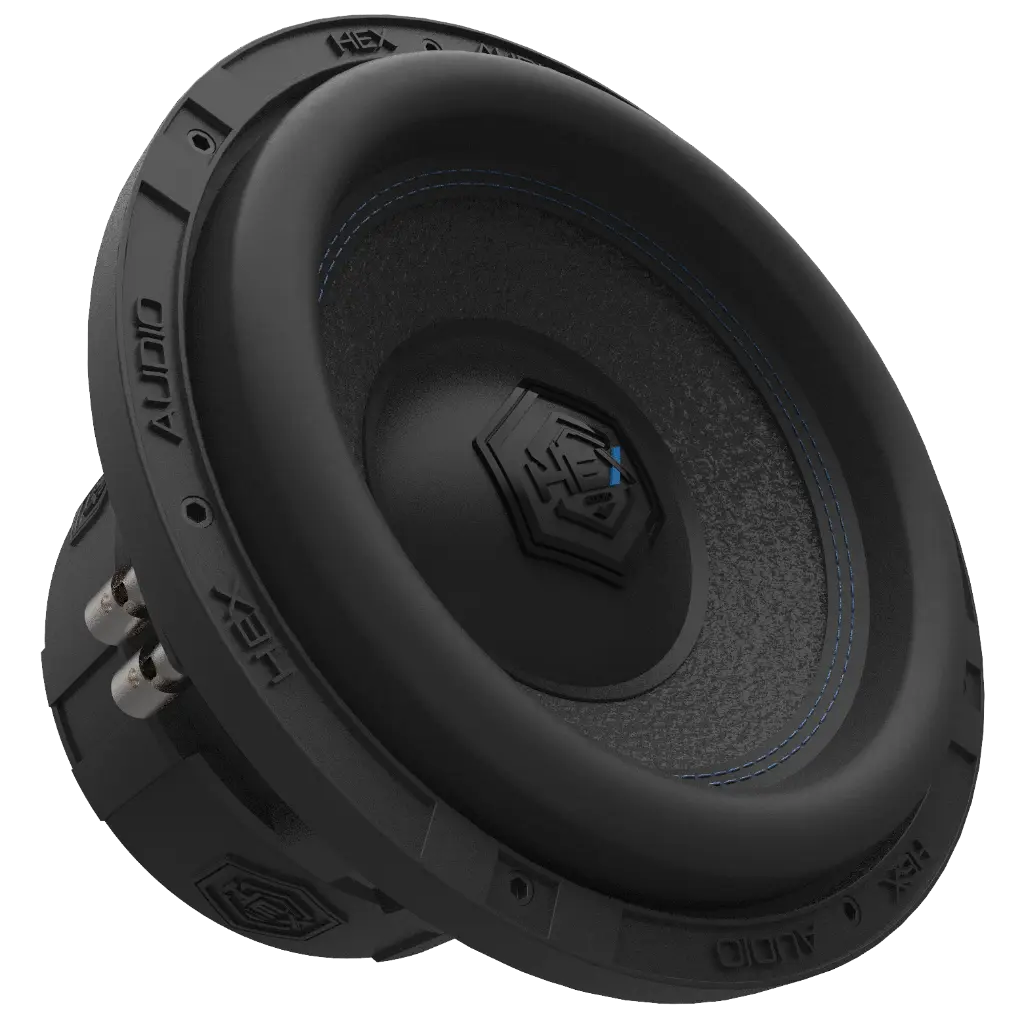

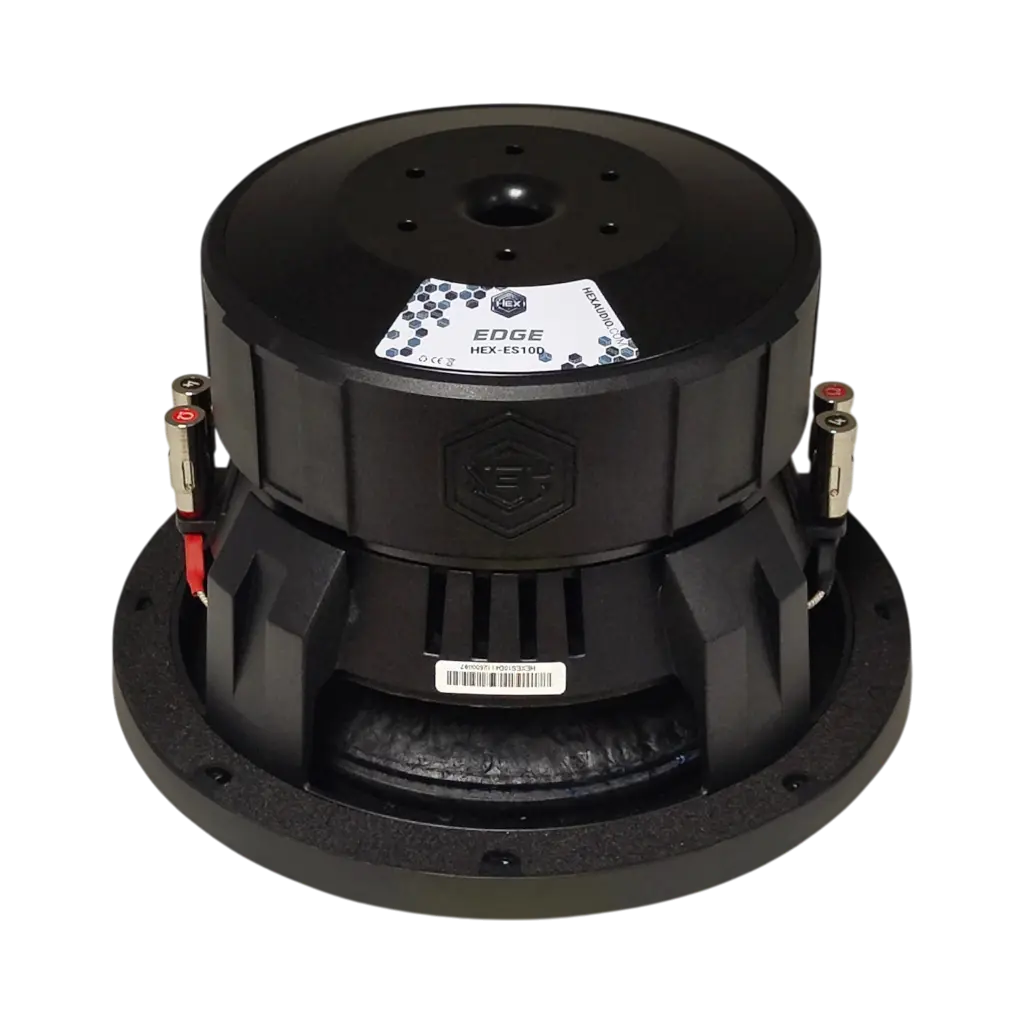

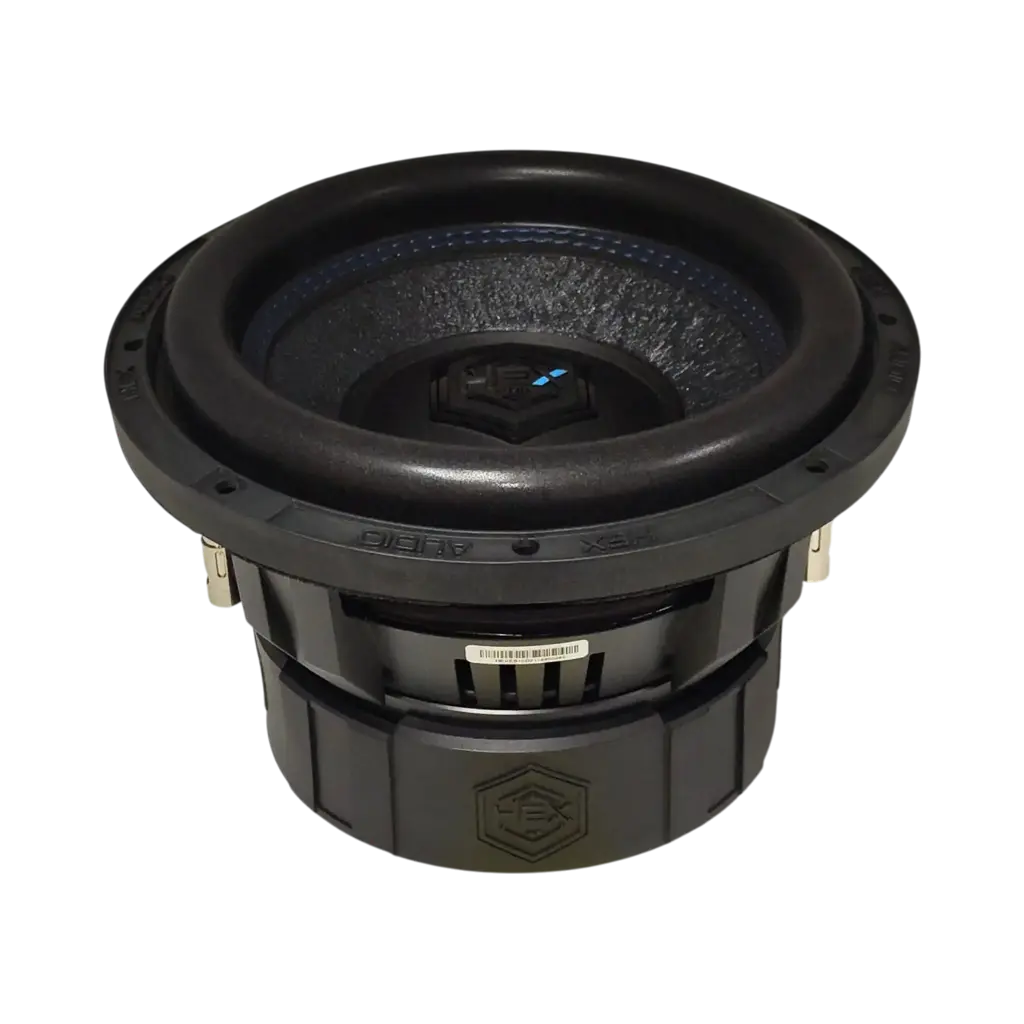

The HEX Audio HEX-ES10D-4 10-inch car subwoofer is designed to deliver deep and powerful bass for aftermarket car audio systems. Featuring a dual 4-ohm voice coil configuration, this subwoofer provides flexible wiring options and compatibility with a wide range of amplifiers.
Engineered for Strong Low-Frequency Performance
The HEX-ES10D-4 utilizes a durable cone and high-roll surround designed to support long excursion and accurate bass reproduction. This allows the subwoofer to produce deep bass frequencies while maintaining sound clarity.
High Power Handling for Loud Bass
With 1600 watts peak power capability, the HEX-ES10D-4 is capable of producing strong and dynamic bass output. The high-temperature voice coil ensures reliable operation even under heavy power loads.
Flexible Installation Options
The dual voice coil configuration allows multiple wiring options for different amplifier setups. The subwoofer can be installed in both sealed and ported enclosures, depending on the desired sound characteristics.
Specs
| Specification | Details |
| Subwoofer Size | 10 Inches |
| Voice Coil Configuration | Dual 4 Ohm |
| Peak Power | 1600 Watts |
| RMS Power | 800 Watts |
| Frequency Response | ~28 Hz – 325 Hz |
| Sensitivity | ~83 dB |
| Voice Coil | High-temperature copper voice coil |
| Surround | High-roll foam surround |
| Cone Material | Pressed paper cone |
| Motor Structure | High-flux ferrite motor |
| Mounting Depth | ~6.0 Inches |
